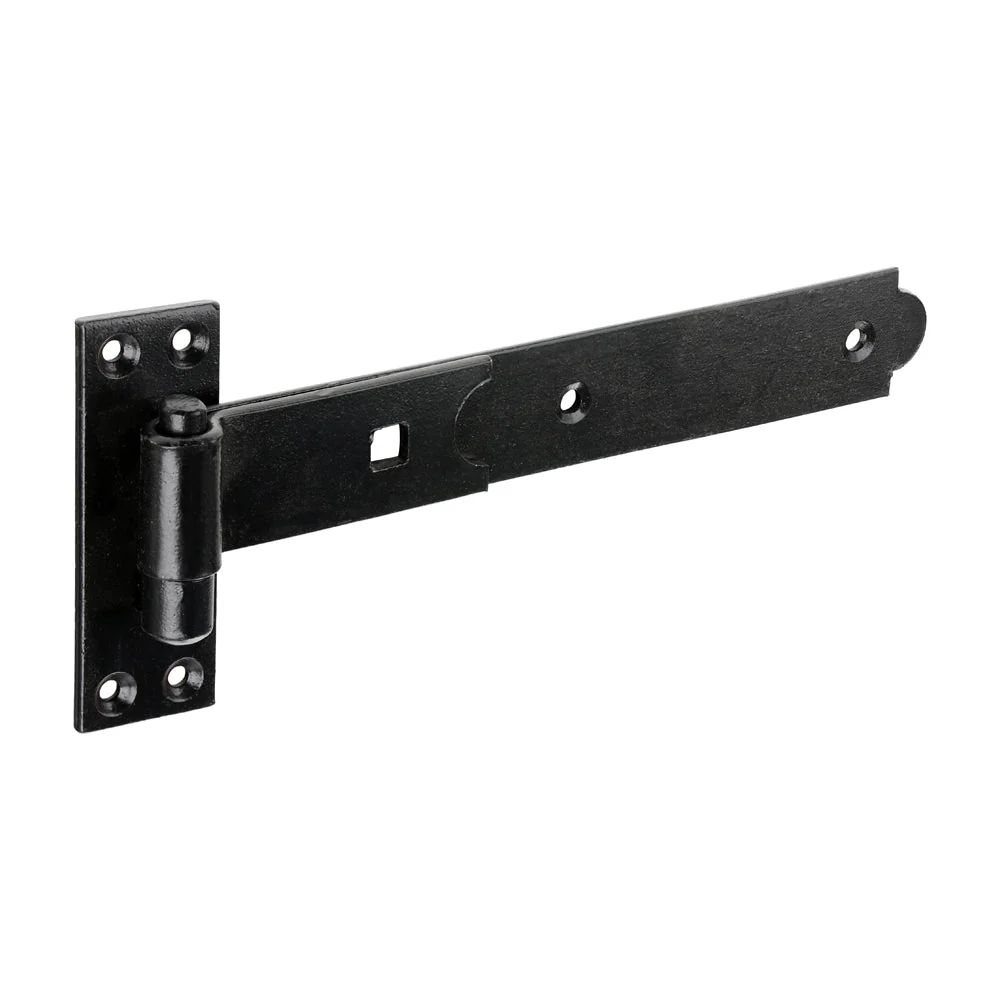

Straight Band & Hook on Plates Hinges – Epoxy Black – Pair
Epoxy black Straight Band & Hook on Plates hinges provide a robust, traditional solution for gates and heavy doors. The straight strap (band) fixes to the gate and drops onto plate-mounted hooks on the post or frame, making installation straightforward and allowing easy lift-off for maintenance. The tough baked-on black finish offers durable corrosion and scuff resistance with a smart, low-gloss appearance.
Key Features & Benefits
- Strong, Reliable Support: Long straight band spreads load to reduce sagging on larger gates.
- Hook-on-Plate Design: Simple lift-off fitting aids installation and future maintenance.
- Durable Epoxy Finish: Hard-wearing black coating for outdoor longevity and clean aesthetics.
- Versatile Use: Suitable for garden gates, field gates, store doors and outbuildings.
- Supplied in Pairs: Matched set sized for one opening.
Product & Technical Details
- Type: Straight Band & Hook on Plates Hinges
- Material: Steel
- Finish: Epoxy black (baked-on coating)
- Pack Size: 1 pair (bands with matching hook-on plates)
- Handing: Universal (non-handed)
- Fixings: Woodscrews or coach screws to suit substrate (not always included)
- Application: Outdoor/sheltered exterior joinery
Available Sizes
| Size (inch) | Approx. Length (mm) |
|---|---|
| 10" | ≈254 |
| 14" | ≈356 |
| 18" | ≈457 |
| 20" | ≈508 |
| 24" | ≈610 |
| 30" | ≈762 |
| 36" | ≈914 |
Suitable Applications
- Garden and field gates
- Shed, store and outbuilding doors
- Timber framed yard and bin-store doors
Instructions for Use
- Select band length to suit gate width/weight; longer/heavier gates require longer bands.
- Fix hook plates plumb on the post; ensure both hooks align on the same vertical line.
- Mount bands to the gate, then lift the gate onto the hooks; check for free swing and clearance.
- Use coach screws on larger/heavier gates and pilot-drill to reduce splitting.
Limitations & Precautions
- For very heavy or high-traffic gates, confirm hinge rating and use appropriate fixings.
- In harsh coastal environments, increased maintenance or alternative finishes may be required.
- Periodically check screw tightness and hinge alignment.
Straight Band & Hook on Plates Hinges – Epoxy Black – Pair deliver robust, easy-fit performance and a durable black finish across a wide range of gate sizes—ideal for reliable outdoor installations.
