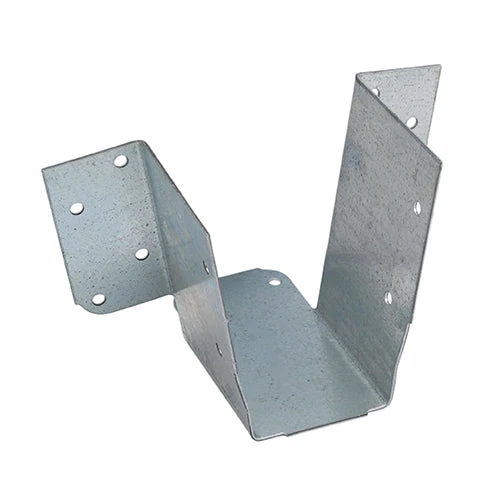

Timber Hangers – Mini – Galvanised - 38 x 75–100mm (20 Pack)
Designed to give a small and economic lightweight timber-to-timber connection for jobs such as loft hatches and decking. Manufactured from pre-galvanised steel for corrosion resistance, with a tag on the base to help avoid rotation for a more stable, consistent fix.
Key Features
- Mini timber hanger for light duty timber-to-timber connections (e.g. loft hatches and decking).
- Suitable for ceiling joists, decking and trimmers.
- Pre-galvanised / galvanised carbon steel for corrosion resistance.
- Anti-rotation tag on the base helps avoid hanger rotation.
- Conforms to Eurocode 5 and service class 2.
- To suit joists: 38 x 75–100mm.
- Bearing (B): 50mm.
- 14 nail holes (to suit 3.75mm nails).
- 1mm thickness.
- Safe working load (BS 5268): 4.17kN (short) / 3.97kN (medium) / 3.47kN (long).
- Supplied as a single unit (MOQ 20).
Typical Applications
- Light-duty timber framing connections for loft hatches.
- Decking and small timber support work.
- Ceiling joists and trimmers where a compact hanger is needed.
Specifications
| Finish | Galvanised |
|---|---|
| Material | Carbon Steel |
| Type | Mini |
| Joist size (W x H) | 38 x 75 to 100mm |
| W (mm) | 38 |
| H (mm) | 72 |
| Bearing B (mm) | 50 |
| Thickness (mm) | 1 |
| Nail holes (3.75mm) | 14 |
| Approval | BS 5268 |
| Eurocode / Service class | Eurocode 5 / Service class 2 |
| Safe working load (kN) – Short term | 4.17 |
| Safe working load (kN) – Medium term | 3.97 |
| Safe working load (kN) – Long term | 3.47 |
| Corrosion rating (1–5) | 2 – Occasionally damp/wet, rural and sheltered areas |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Packs Received | 20 |
| Carton quantity (packs) | 100 |
| Pack dimensions (L x W x H) | 50 x 38 x 72mm |
| Pack weight | 0.09kg |
